S852TF

Silicon NPN Planar RF Transistor

S852TF Features

* Low supply voltage Low current consumption e3 Low noise figure 50 Ω input impedance at 945 MHz High power gain Lead (Pb)-free component Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Mechanical Data Typ: S852TF Ca

S852TF General Description

The main purpose of this bipolar transistor is broadband amplification up to 2 GHz. In the space-saving 3-pin surface-mount SOT-490 package electrical performance and reliability are taken to a new level covering a smaller footprint on PC boards than previous packages. In addition to space savings, .

S852TF Datasheet (173.27 KB)

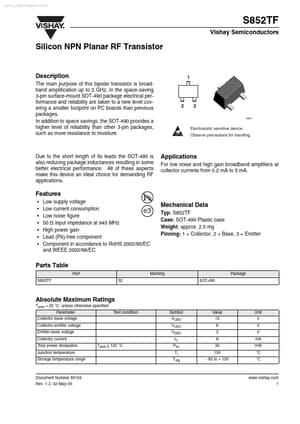

Preview of S852TF PDF

Datasheet Details

Part number:

S852TF

Manufacturer:

Vishay ↗ Siliconix

File Size:

173.27 KB

Description:

Silicon npn planar rf transistor.
