SFH6136 - High Speed Optocoupler

SFH6136 Description

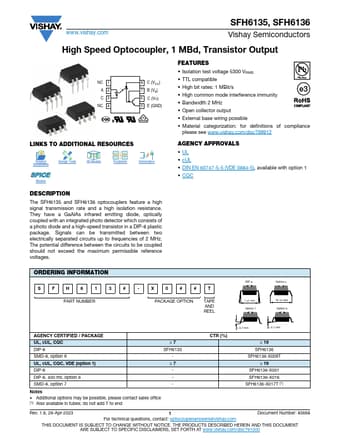

www.vishay.com SFH6135, SFH6136 Vishay Semiconductors High Speed Optocoupler, 1 MBd, Transistor Output NC 1 A2 C3 NC 4 8 C (VCC) 7 B (VB) 6 C (VO).
The SFH6135 and SFH6136 optocouplers feature a high signal transmission rate and a high isolation resistance.

SFH6136 Features

* Isolation test voltage 5300 VRMS
* TTL compatible
* High bit rates: 1 MBit/s
* High common mode interference immunity
* Bandwidth 2 MHz
* Open collector output
* External base wiring possible
* Material categorization: for definitions
