SI8405DB, P-Channel MOSFET

12 V P-Channel 1.8 V (G-S) MOSFET Si8405DB Vishay Siliconix PRODUCT SUMMARY VDS (V) - 12 RDS(on) () 0.055 at VGS = - 4.5 V 0.070 at VGS = - 2.5 V.

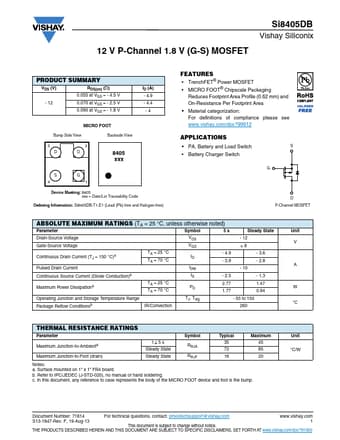

datasheet Preview Page 1 from Datasheet4u.com

SI8405DB_VishaySiliconix.pdf

SI8405DB Datasheet Preview — Preview of SI8405DB PDF

Datasheet Details

Part number:

SI8405DB

Manufacturer:

Vishay ↗ Siliconix

File Size:

115.00 KB

Description:

P-Channel MOSFET

Features

* TrenchFET® Power MOSFET
* MICRO FOOT® Chipscale Packaging Reduces Footprint Area Profile (0.62 mm) and On-Resistance Per Footprint Area

Applications

* PA, Battery and Load Switch S
* Battery Charger Switch G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol 5s Steady State Unit Drain-Source Voltage Gate-Source Voltage VDS - 12 V VGS ±8 Continuous Drain Current (TJ
