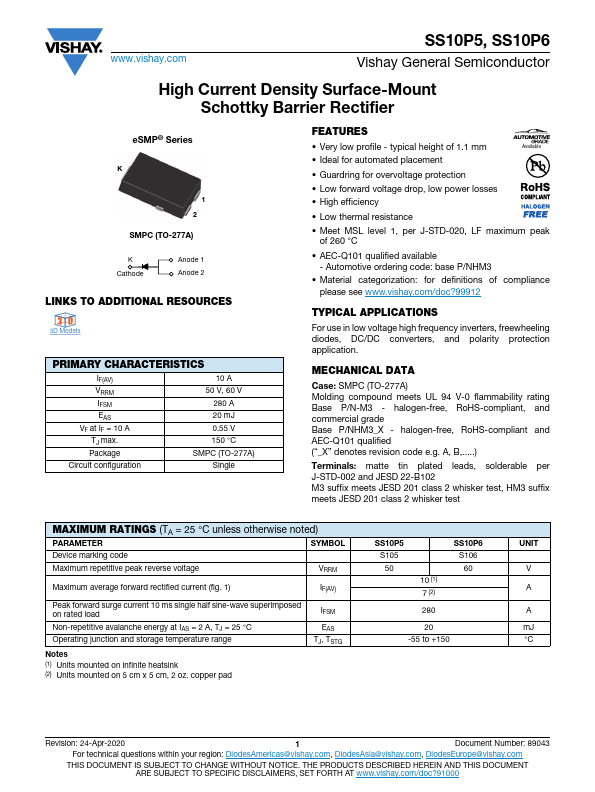

SS10P6, SS10P5 Schottky Barrier Rectifier

www.vishay.com SS10P5, SS10P6 Vishay General Semiconductor High Current Density Surface-Mount Schottky Barrier Rectifier eSMP® Series K 1 2 SMPC (.

SS10P5_VishaySiliconix.pdf

SS10P6 Datasheet Preview — This datasheet PDF includes multiple part numbers: SS10P6, SS10P5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS10P6, SS10P5

Manufacturer:

Vishay ↗ Siliconix

File Size:

94.41 KB

Description:

Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: SS10P6, SS10P5.
Please refer to the document for exact specifications by model.

Features

* Very low profile - typical height of 1.1 mm Available
* Ideal for automated placement
* Guardring for overvoltage protection
* Low forward voltage drop, low power losses
* High efficiency
* Low thermal resistance
* Meet MSL level 1, p

Applications

* For use in low voltage high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection application. MECHANICAL DATA Case: SMPC (TO-277A) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Base P/NHM3_X - hal
