SS3P5 High Current Density Surface-Mount Schottky Rectifier

Vishay Siliconix

Description

www.vishay.com SS3P5, SS3P6 Vishay General Semiconductor High Current Density Surface-Mount Schottky Rectifier eSMP ® Series SMP (DO-220AA) Catho.

📥 Download Datasheet

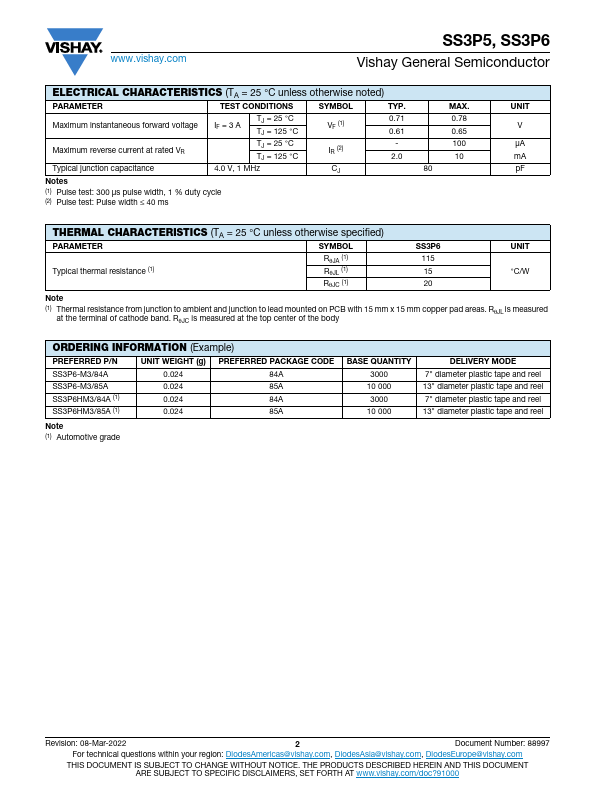

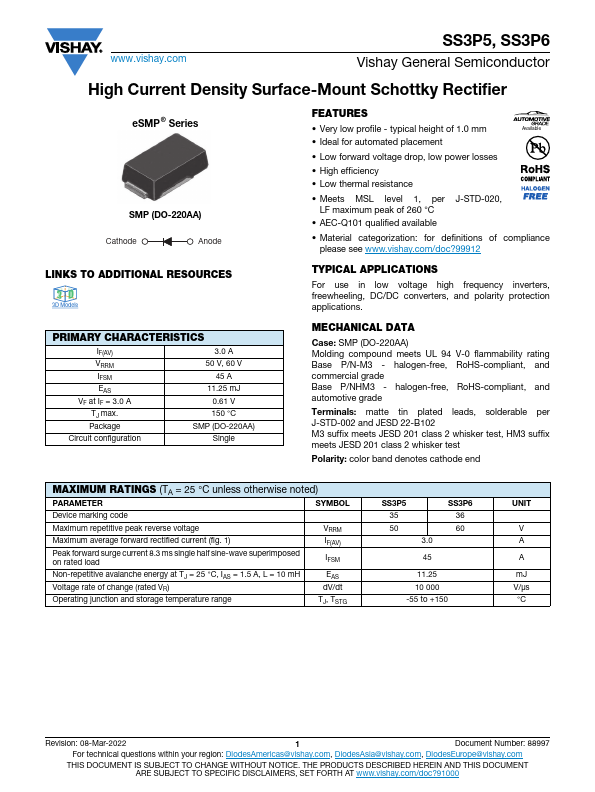

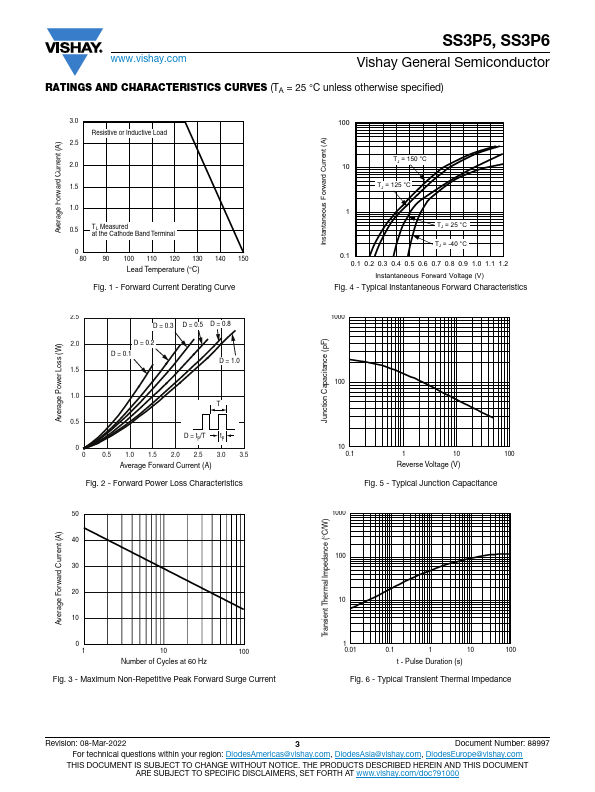

SS3P5 Datasheet Preview — Preview of SS3P5 PDF

Datasheet Specifications

Part number: SS3P5
Manufacturer: Vishay ↗ Siliconix
File Size: 101.34 KB
Datasheet: SS3P5_VishaySiliconix.pdf
Description: High Current Density Surface-Mount Schottky Rectifier

Features

* Very low profile - typical height of 1.0 mm Available
* Ideal for automated placement
* Low forward voltage drop, low power losses
* High efficiency
* Low thermal resistance
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: SMP (DO-220AA) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Base P/NHM3 - halogen-fre
