ST110SPBF Phase Control Thyristors

ST110SPBF Description

www.DataSheet.co.kr ST110SPbF Series Vishay Semiconductors Phase Control Thyristors (Stud Version), 110 A .

ST110SPBF Features

* Center gate
* International standard case TO-209AC (TO-94)
* Compression bonded encapsulation for heavy duty operations such as severe thermal cycling
* Hermetic glass-metal case with (Glass-metal seal over 1200 V) TO-209AC (TO-94) ceramic insulator
* Comp

ST110SPBF Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers MAJOR RATINGS AND CHARACTERISTICS PARAMETER IT(AV) IT(RMS) 50 Hz ITSM 60 Hz 50 Hz 60 Hz VDRM/VRRM tq TJ Typical TEST CONDITIONS VALUES 110 TC 90 175 2700 2830 36.4 33.2 400 to 1600 100 - 40 to 125 V μs °C kA

📥 Download Datasheet

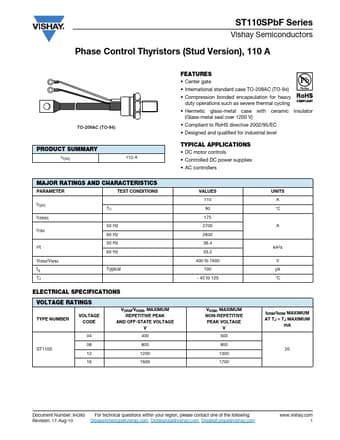

Preview of ST110SPBF PDF
datasheet Preview Page 2 datasheet Preview Page 3
