ST280C06C3PBF, ST280CPBF Phase Control Thyristors

ST280C06C3PBF Description

www.DataSheet.co.kr ST280CPbF Series Vishay High Power Products Phase Control Thyristors (Hockey PUK Version), 500 A .

ST280C06C3PBF Features

* Center amplifying gate
* Metal case with ceramic insulator
* International standard case TO-200AB (A-PUK)
* Lead (Pb)-free TO-200AB (A-PUK) RoHS COMPLIANT

ST280C06C3PBF Applications

* PRODUCT SUMMARY IT(AV) 500 A
* DC motor controls
* Controlled DC power supplies
* AC controllers MAJOR RATINGS AND CHARACTERISTICS PARAMETER IT(AV) TEST CONDITIONS VALUES 500 Ths 55 960 IT(RMS) Ths 50 Hz ITSM 60 Hz 50 Hz 60 Hz VDRM/VRRM tq TJ Typical 25 7850 A 8220 308 281

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ST280C06C3PBF, ST280CPBF. Please refer to the document for exact specifications by model.

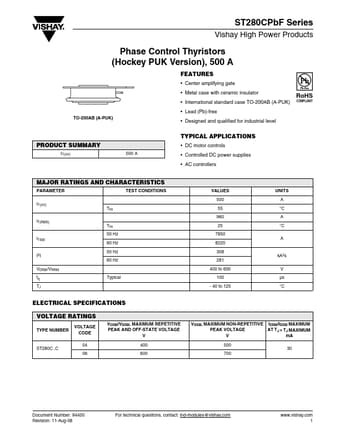

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST280C06C3PBF, ST280CPBF
Manufacturer
Vishay ↗ Siliconix
File Size
220.04 KB
Datasheet
ST280CPBF_VishaySiliconix.pdf
Description
Phase Control Thyristors
Note
This datasheet PDF includes multiple part numbers: ST280C06C3PBF, ST280CPBF.
Please refer to the document for exact specifications by model.
