SUD50N02-09P Datasheet - Vishay Siliconix

SUD50N02-09P N-Channel MOSFET

SUD50N02-09P Features

* PRODUCT SUMMARY VDS (V) 20 rDS(on) (W) 0.0095 @ VGS = 10 V 0.017 @ VGS = 4.5 V ID (A)a 20 15 D D D D TrenchFETr Power MOSFET 175_C Junction Temperature PWM Optimized for High Efficiency 100% Rg Tested APPLICATIONS D High-Side Synchronous Buck DC/DC Conversion

* Desktop

* Server

SUD50N02-09P_VishaySiliconix.pdf

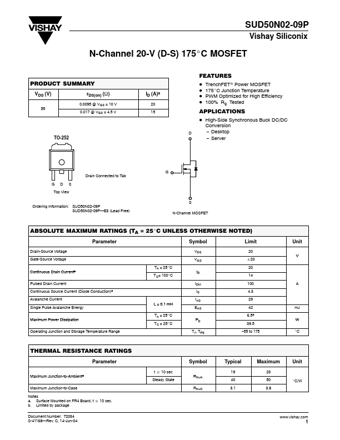

Preview of SUD50N02-09P PDF
SUD50N02-09P Datasheet Preview Page 2 SUD50N02-09P Datasheet Preview Page 3

Datasheet Details

Part number:

SUD50N02-09P

Manufacturer:

Vishay ↗ Siliconix

File Size:

52.34 KB

Description:

N-channel mosfet.
