SUM40N02-09P

N-Channel 20-V (D-S) 175C MOSFET

Vishay Siliconix

SUM40N02-09P General Description

The attached spice model describes the typical electrical characteristics of the n-channel vertical DMOS. The subcircuit model is extracted and optimized over the

*55 to 125°C temperature ranges under the pulsed 0 to 10V gate drive. The saturated output impedance is best fit at the gate bias.

SUM40N02-09P Datasheet (175.33 KB)

SUM40N02-09P Datasheet Preview — Preview of SUM40N02-09P PDF

Datasheet Details

Part number:

SUM40N02-09P

Manufacturer:

Vishay ↗ Siliconix

File Size:

175.33 KB

Description:

N-channel 20-v (d-s) 175c mosfet.

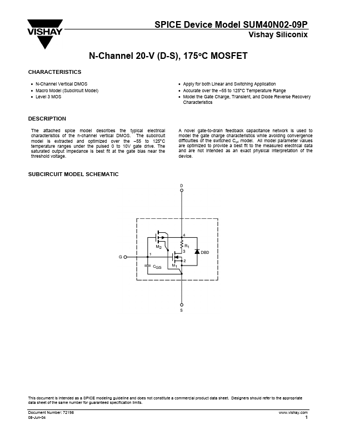

SPICE Device Model SUM40N02-09P Vishay Siliconix N-Channel 20-V (D-S), 175°C MOSFET CHARACTERISTICS

* N-Channel Vertical DMOS

* Macro.
