SUV90N06-05 N-Channel MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

SUV90N06-05 Vishay Siliconix N-Channel 60-V (D-S) 175 °C MOSFET PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 60 0.0052 at VGS = 10 V 0.0072 at VGS =.

📥 Download Datasheet

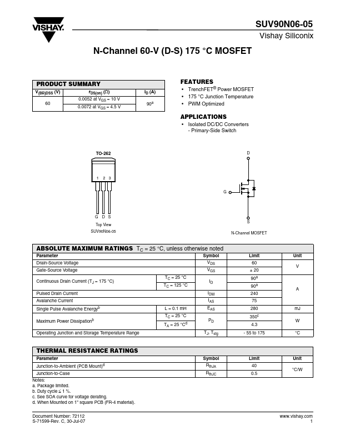

Preview of SUV90N06-05 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature

Applications

* Isolated DC/DC Converters - Primary-Side Switch D 1 23 G G DS Top View SUV90N06-05 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 60 V VGS ± 20 Continuous Drain Current (
