TEPT4400 Ambient Light Sensor

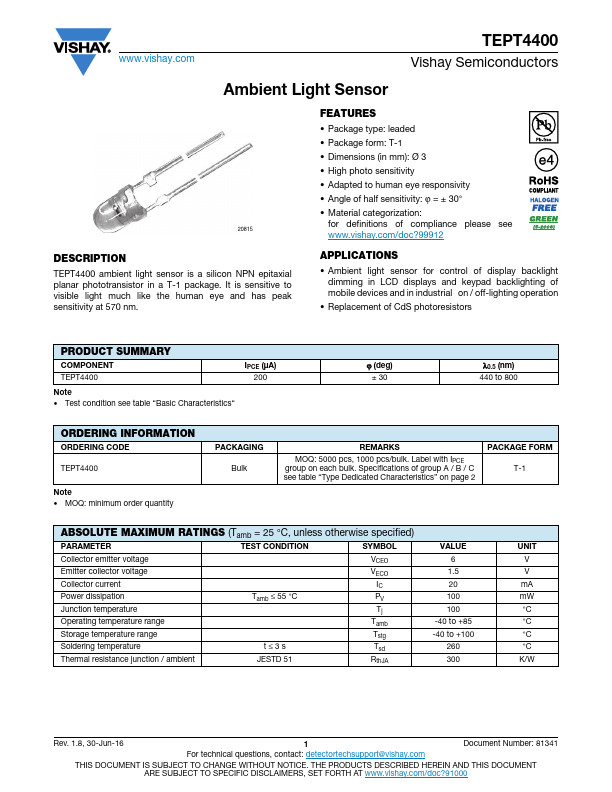

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com TEPT4400 Vishay Semiconductors Ambient Light Sensor 20815 .
TEPT4400 ambient light sensor is a silicon NPN epitaxial planar phototransistor in a T-1 package.

📥 Download Datasheet

Preview of TEPT4400 PDF

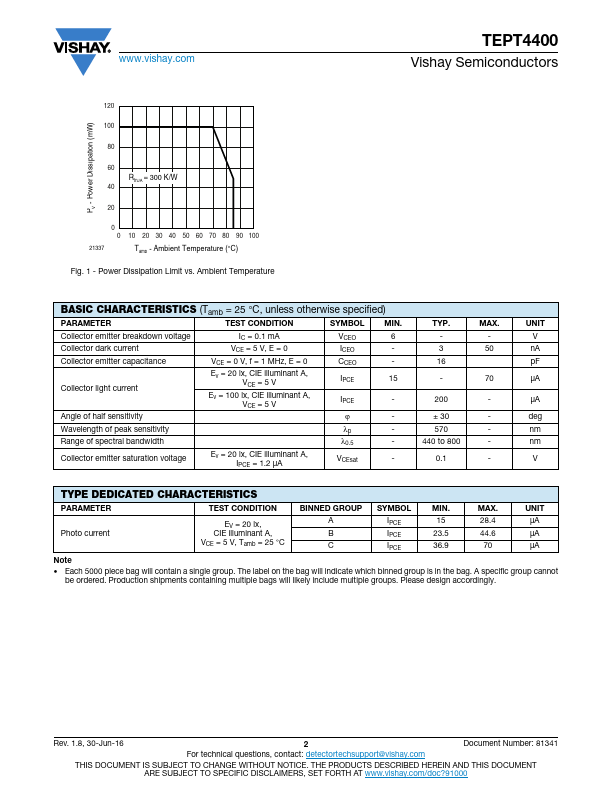

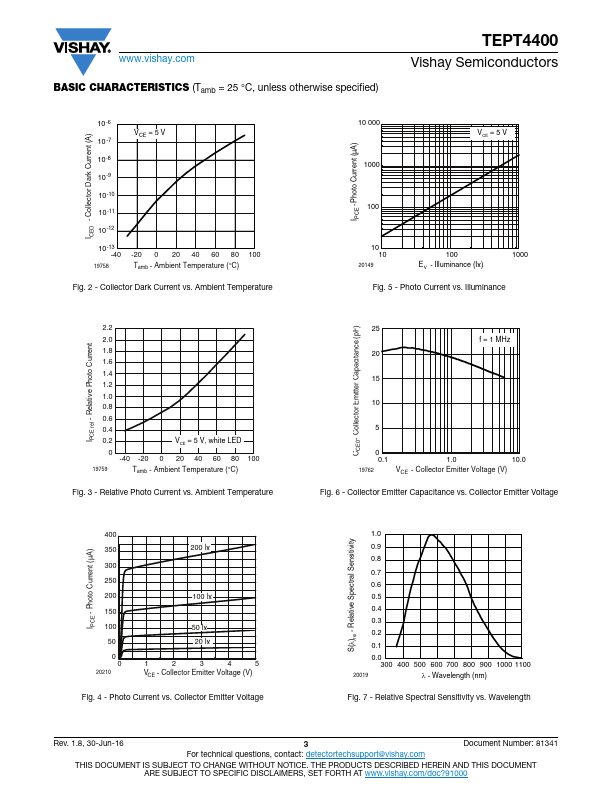

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Package type: leaded
* Package form: T-1
* Dimensions (in mm): Ø 3
* High photo sensitivity
* Adapted to human eye responsivity
* Angle of half sensitivity: ϕ = ± 30°
* Material categorization: for definitions of compliance please see www. vis

Applications

* Ambient light sensor for control of display backlight dimming in LCD displays and keypad backlighting of mobile devices and in industrial on / off-lighting operation
* Replacement of CdS photoresistors PRODUCT SUMMARY COMPONENT TEPT4400 IPCE (μA) 200 Note
* Test conditio
