TLWR8900 - Utilizing one of the world brightest AllnGaP technologies LED

Datasheet Summary

Description

The TELUX™ series is a clear, non diffused LED for applications where supreme luminous flux is required.

It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP technology.

Features

  • Utilizing one of the world’s brightest (AS) AllnGaP technologies.
  • High luminous flux e3.
  • Supreme heat dissipation: RthJP is 90 K/W.
  • High operating temperature: Tamb = - 40 to + 110 °C.
  • Meets SAE and ECE color requirements for the automobile industry for color red.
  • Packed in tubes for automatic insertion.
  • Luminous flux, forward voltage and color categorized for each tube.
  • Small mechanical tolerances allow precise usage of ex.

📥 Download Datasheet

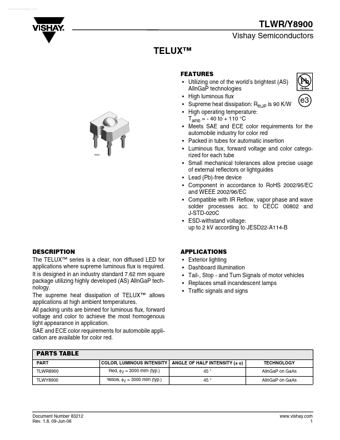

Datasheet preview – TLWR8900

Datasheet Details

Part number TLWR8900
Manufacturer Vishay Siliconix
File Size 255.16 KB
Description Utilizing one of the world brightest AllnGaP technologies LED
Datasheet download datasheet TLWR8900 Datasheet
Additional preview pages of the TLWR8900 datasheet.

📁 Similar Datasheet

  • TLWR7600 - TELUXE (Vishay Telefunken)
  • TLWR7900 - TELUXE (Vishay Telefunken)
  • TLWR992 - TELUX / Utilizing one of the world brightest (AS) AllnGaP technologies (Vaishali Semiconductor)
  • TLWB7600 - TELUXE (Vishay Telefunken)
  • TLWBG7600 - TELUXE (Vishay Telefunken)
  • TLWD1060 - LED Lamp (Toshiba Semiconductor)
  • TLWD1060T18 - LED Lamp (Toshiba Semiconductor)
  • TLWD1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWD1100T11 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWJ1100 - Panel Circuit Indicator (Toshiba Semiconductor)
Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com TLWR/Y8900 Vishay Semiconductors TELUX™ FEATURES • Utilizing one of the world’s brightest (AS) AllnGaP technologies • High luminous flux e3 • Supreme heat dissipation: RthJP is 90 K/W • High operating temperature: Tamb = - 40 to + 110 °C • Meets SAE and ECE color requirements for the automobile industry for color red • Packed in tubes for automatic insertion • Luminous flux, forward voltage and color categorized for each tube • Small mechanical tolerances allow precise usage of external reflectors or lightguides • Lead (Pb)-free device • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC • Compatible with IR Reflow, vapor phase and wave solder processes acc.
