TSOP348 - IR Receiver Modules for Remote Control Systems

Vishay Siliconix

📥 Download Datasheet

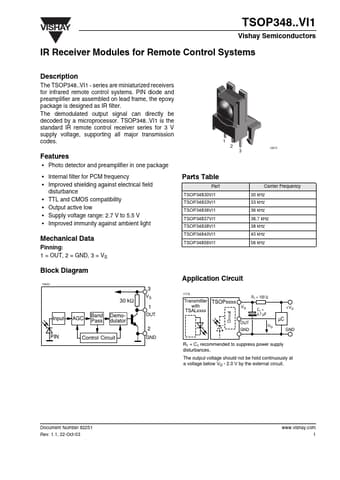

TSOP348 Datasheet Preview — Preview of TSOP348 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TSOP348
Manufacturer: Vishay ↗ Siliconix
File Size: 244.01 KB
Datasheet: TSOP348_VishaySiliconix.pdf
Description: IR Receiver Modules for Remote Control Systems

TSOP348 Product details

Description

The TSOP348..VI1 - series are miniaturized receivers for infrared remote control systems..

Features

Photo detector and preamplifier in one package.
Internal filter for PCM frequency.
Improved shielding against electrical field disturbance.
TTL and CMOS compatibility.
Output active low.
Supply voltage range: 2.7 V to 5.5 V.
Improved immunity against ambient light 3 16872 Parts Table Part TSOP34830VI1 TSOP34833VI1 TSOP34836VI1 TSOP34837VI1 TSOP34838VI1 TSOP34840VI1 TSOP34856VI1 Carrier Frequency 30 kHz 33 kHz 36 kHz 36.7 kHz 38 k.
