VDRH07K300xyE High Surge Suppression Varistors

The varistors consist of a disc of low-ß ceramic material with two tinned solid copper leads. They are coated with a layer of ochre coloured epoxy, which provides electrical, mechanical and climatic protection. The encapsulation is resistant to all cleaning solvents in accordance with “IEC 60068-2-4.

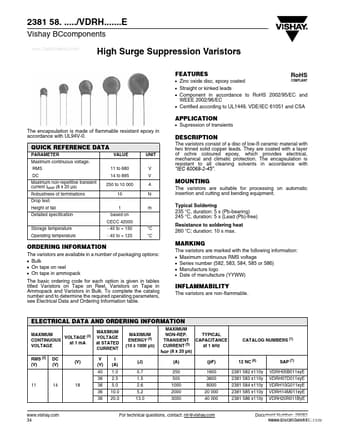

2381 58. /VDRHE Vishay BCcomponents www.DataSheet4U.com High Surge Suppression Varistors The encapsulation is made of flammable resistant epoxy in accordance with UL94V-0. QUICK REFERENCE DATA PARAMETER VALUE Maximum continuous voltage: RMS 11 to 680 DC 14 to 895 Maximum non-repetitive transient current INRP (8 x 20 µs) 250 to 10 000 Robustness of terminations 10 Drop test: Height of fall 1 Detailed specification based on CECC 42000 Storage temperature - 40 to + 150 Operat.
