VSKU10516P Datasheet - Vishay Siliconix

Thyristor/Thyristor

VSKU10516P Features

* High voltage

* Industrial standard package

* Thick Al metal die and double stick bonding

* Thick copper baseplate

* UL E78996 approved

* 3500 VRMS isolating voltage ADD-A-PAKTM RoHS COMPLIANT

* Totally lead (Pb)-free

* Designed and

VSKU10516P General Description

The Generation 5 of ADD-A-PAKTM module combines the excellent thermal performance obtained by the usage of direct bonded copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid copper baseplate at the bottom side of the device. The Cu baseplate allows an easier mount.

VSKU10516P Datasheet (212.88 KB)

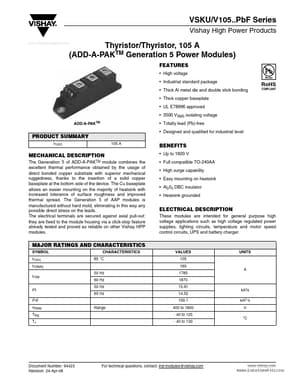

Preview of VSKU10516P PDF

Datasheet Details

Part number:

VSKU10516P

Manufacturer:

Vishay ↗ Siliconix

File Size:

212.88 KB

Description:

Thyristor/thyristor.
