VSR144 - Bulk Metal Foil Technology Industrial Grade Miniature Voltage Divider

Datasheet Summary

Features

Temperature Coefficient of Resistance: Nominal TCR: ± 4ppm/°C (0° to 60°C) Product may not be to scale.
TCR Tracking: 1.5ppm/°C.
Ratio Stability: < ± 0.001% (10ppm) under load-life conditions.
Ratio Tolerance: to ± 0.02% www. DataSheet4U. com.

Vishay Siliconix

📥 Download Datasheet

Datasheet Details

Part number	VSR144
Manufacturer	Vishay Siliconix
File Size	82.69 KB
Description	Bulk Metal Foil Technology Industrial Grade Miniature Voltage Divider
Datasheet	VSR144 Datasheet
Additional preview pages of the VSR144 datasheet.

📁 Similar Datasheet

VSR050N06MS - N-Channel Advanced Power MOSFET (Vanguard Semiconductor)
VSR080N06MS - N-Channel Advanced Power MOSFET (Vanguard Semiconductor)
VSR080N08LS - N-Channel Advanced Power MOSFET (Vanguard Semiconductor)
VSR090N10MS - N-Channel Advanced Power MOSFET (Vanguard Semiconductor)
VSR5A - Fiber Optic Receiving Module (VITonet)
VSR5B - Fiber Optic Receiving Module (VITonet)
VSRVES01 - Linux RISC-V + VSDSP Platform IC (VLSI)

Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text

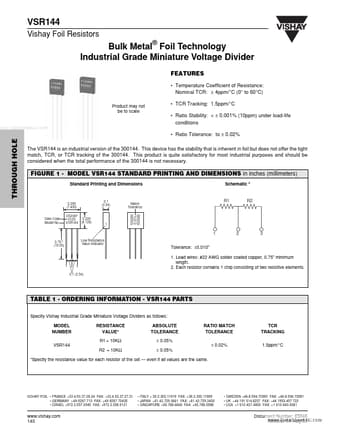

VSR144 Vishay Foil Resistors Bulk Metal® Foil Technology Industrial Grade Miniature Voltage Divider FEATURES • Temperature Coefficient of Resistance: Nominal TCR: ± 4ppm/°C (0° to 60°C) Product may not be to scale • TCR Tracking: 1.5ppm/°C • Ratio Stability: < ± 0.001% (10ppm) under load-life conditions • Ratio Tolerance: to ± 0.02% www.DataSheet4U.com THROUGH HOLE The VSR144 is an industrial version of the 300144. This device has the stability that is inherent in foil but does not offer the tight match, TCR, or TCR tracking of the 300144. This product is quite satisfactory for most industrial purposes and should be considered when the total performance of the 300144 is not necessary.
