BAQ335 Small Signal Switching Diode

BAQ335 Description

www.vishay.com BAQ333, BAQ334, BAQ335 Vishay Semiconductors Small Signal Switching Diodes, Low Leakage Current DESIGN SUPPORT TOOLS click logo to g.

BAQ335 Features

* Silicon planar diodes
* Saving space
* Hermetic sealed parts
* Fits onto SOD-323/SOT-23 footprints
* Electrical data identical with the devices BAQ33 to BAQ35, BAQ133 to BAQ135
* Very low reverse current
* Material categorization: for definit

BAQ335 Applications

* Protection circuits, time delay circuits, peak follower circuits, logarithmic amplifiers PARTS TABLE PART TYPE DIFFERENTIATION BAQ333 BAQ334 BAQ335 VRRM = 40 V VRRM = 70 V VRRM = 140 V ORDERING CODE BAQ333-TR3 or BAQ333-TR BAQ334-TR3 or BAQ334-TR BAQ335-TR3 or BAQ335-TR CIRCUIT CONF

📥 Download Datasheet

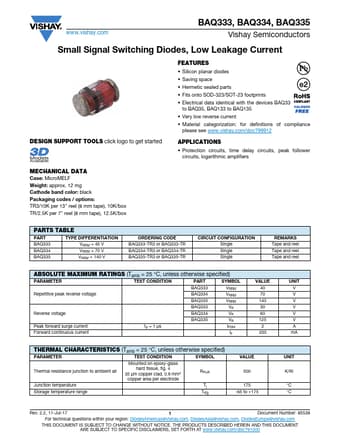

Preview of BAQ335 PDF
datasheet Preview Page 2 datasheet Preview Page 3
