BFP92A - Silicon NPN Planar RF Transistor

Product Overview

Vishay Telefunken

Part number	BFP92A
Manufacturer	Vishay Telefunken
File Size	173.78 KB
Description	Silicon NPN Planar RF Transistor
Datasheet	BFP92A Datasheet

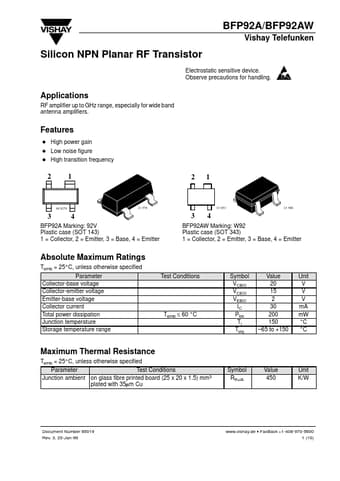

Additional preview pages of the BFP92A datasheet.

D High power gain D Low noise figure D High transition frequency 2 1 2 1 94 9279 13 579 13 653 13 566 3 4 3 4 BFP92A Marking: 92V Plastic case (SOT 143) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter BFP92AW Marking: W92 Plastic case (SOT 343) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter Absolute Maximum Ratings Tamb = 25_C, unless otherwise specified Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Total power dissipation Junct.
