CNY75A, CNY Optocoupler

CNY75A Description

CNY75A/ B/ C/ GA/ GB/ GC Vishay Semiconductors Optocoupler, Phototransistor Output, With Base Connection .
The CNY75A/ B/ C/ GA/ GB/ GC consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-pin plastic dual inl.

CNY75A Features

* Isolation materials according to UL94-VO
* Pollution degree 2 (DIN/VDE 0110 / resp. IEC 60664)
* Climatic classification 55/100/21 (IEC 60068 part 1)
* Special construction: Therefore, extra low coupling capacity of typical 0.2 pF, high Common Mode Rejection

CNY75A Applications

* Circuits for safe protective separation against electrical shock according to safety class II (reinforced isolation): For appl. class I - IV at mains voltage ≤ 300 V Document Number 83536 Rev. 1.7, 26-Oct-04 Safety for mains-operated electronic and related house hold apparatus www. vishay. com 1 CN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CNY75A, CNY. Please refer to the document for exact specifications by model.

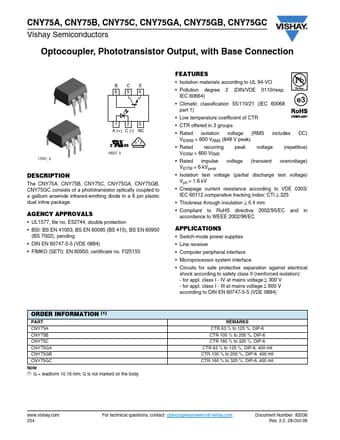

datasheet Preview Page 2 datasheet Preview Page 3
