MCL4448, Small Signal Fast Switching Diodes

www.vishay.com MCL4148, MCL4448 Vishay Semiconductors Small Signal Fast Switching Diodes MECHANICAL DATA Case: MicroMELF Weight: approx.12 mg Cath.

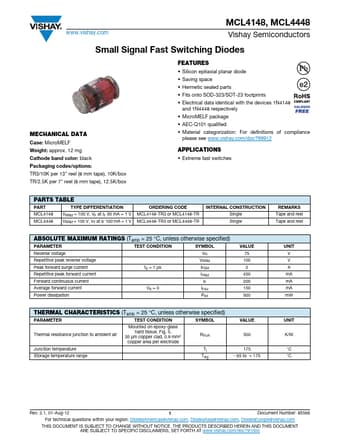

datasheet Preview Page 1 from Datasheet4u.com

MCL4448_VishayTelefunken.pdf

MCL4448 Datasheet Preview — Preview of MCL4448 PDF

Datasheet Details

Part number:

MCL4448

Manufacturer:

Vishay ↗ Telefunken

File Size:

80.12 KB

Description:

Small Signal Fast Switching Diodes

Features

* Silicon epitaxial planar diode
* Saving space
* Hermetic sealed parts
* Fits onto SOD-323/SOT-23 footprints
* Electrical data identical with the devices 1N4148 and 1N4448 respectively
* MicroMELF package
* AEC-Q101 qualified
* Materia

Applications

* Extreme fast switches PARTS TABLE PART TYPE DIFFERENTIATION MCL4148 MCL4448 VRRM = 100 V, VF at IF 50 mA = 1 V VRRM = 100 V, VF at IF 100 mA = 1 V ORDERING CODE MCL4148-TR3 or MCL4148-TR MCL4448-TR3 or MCL4448-TR INTERNAL CONSTRUCTION Single Single REMARKS Tape and reel Tape and re
