S595TR - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage

Datasheet Summary

Features

  • D D D D Integrated gate protection diodes Low noise figure High gain Biasing network on chip D Improved cross modulation at gain reduction D High AGC-range D SMD package 2 1 1 2 94 9279 13 579 94 9278 95 10831 3 4 4 3 S595T Marking: 595 Plastic case (SOT 143) 1 = Source, 2 = Drain, 3 = Gate 2, 4 = Gate 1 S595TR Marking: 59R Plastic case (SOT 143R) 1 = Source, 2 = Drain, 3 = Gate 2, 4 = Gate 1 1 2 13 654 13 566 4 3 S595TRW Marking: W59 Plastic case (SOT 343R) 1 = Source, 2 =.

📥 Download Datasheet

Datasheet preview – S595TR

Datasheet Details

Part number S595TR
Manufacturer Vishay Telefunken
File Size 195.87 KB
Description MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
Datasheet download datasheet S595TR Datasheet
Additional preview pages of the S595TR datasheet.

📁 Similar Datasheet

  • S5930 - NMOS multichannel detector head (Hamamatsu Corporation)
  • S5930-256S - NMOS multichannel detector head (Hamamatsu Corporation)
  • S5930-512S - NMOS multichannel detector head (Hamamatsu Corporation)
  • S5931 - NMOS multichannel detector head (Hamamatsu Corporation)
  • S5931-1024S - NMOS multichannel detector head (Hamamatsu Corporation)
  • S5931-512S - NMOS multichannel detector head (Hamamatsu Corporation)
  • S5933 - 32-Bit PCI MatchMaker (AMCC)
  • S5933QE - PCI Interface Device Summary (AMCC)
  • S5933QE - Controller Device Summary (ETC)
  • S5935 - 32-Bit Pci Bus Master/target (AMCC)
Other Datasheets by Vishay Telefunken
  • S595TRW - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
  • S595T - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
  • S595 - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
  • S592T - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
  • S592TR - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
  • S592TRW - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
  • S593T - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage
  • S593TR - MOSMIC for TV-Tuner Prestage with 5 V Supply Voltage

Full PDF Text Transcription

Click to expand full text

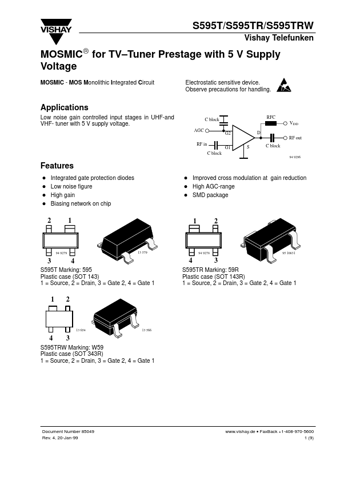

S595T/S595TR/S595TRW Vishay Telefunken MOSMIC® for TV–Tuner Prestage with 5 V Supply Voltage MOSMIC - MOS Monolithic Integrated Circuit Electrostatic sensitive device. Observe precautions for handling. Applications Low noise gain controlled input stages in UHF-and VHF- tuner with 5 V supply voltage.
