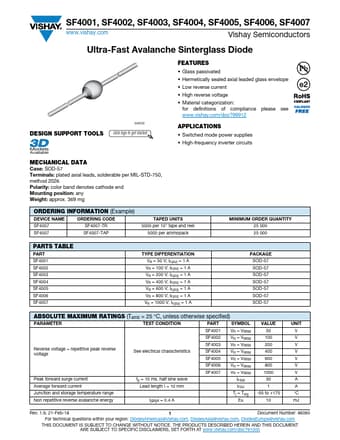

SF4001, SF4002, SF4003, SF4004, SF4005, SF4006, SF4007
www.vishay.com
Vishay Semiconductors
Ultra-Fast Avalanche Sinterglass Diode
DESIGN SUPPORT TOOLS
949539
click logo to get started
Models
Available
MECHANICAL DATA Case: SOD-57 Terminals: plated axial leads, solderable per MIL-STD-750, method 2026 Polarity: color band denotes cathode end Mounting position: any Weight: approx. 369 mg
FEATURES • Glass passivated • Hermetically sealed axial leaded glass envelope • Low reverse current • High reverse voltage • Material categorization:
for definitions of compliance please see www.vishay.
