TCRT5000 Reflective Optical Sensor

TCRT5000 Description

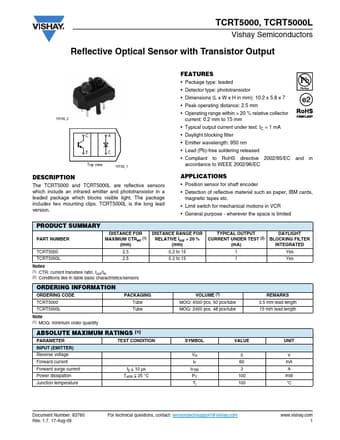

TCRT5000, TCRT5000L Vishay Semiconductors Reflective Optical Sensor with Transistor Output 19156_2 CA EC Top view 19156_1 .
The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light.

TCRT5000 Features

* Package type: leaded
* Detector type: phototransistor
* Dimensions (L x W x H in mm): 10.2 x 5.8 x 7
* Peak operating distance: 2.5 mm
* Operating range within > 20 % relative collector current: 0.2 mm to 15 mm
* Typical output current under test: IC

TCRT5000 Applications

* Position sensor for shaft encoder
* Detection of reflective material such as paper, IBM cards, magnetic tapes etc.
* Limit switch for mechanical motio
