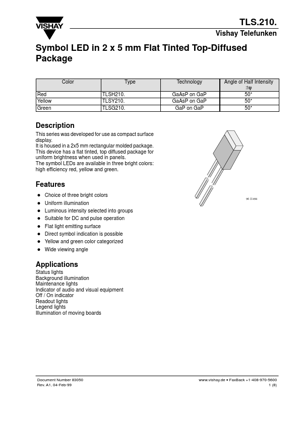

TLSH210 Datasheet - Vishay Telefunken

TLSH210 Symbol LED in 2 x 5 mm Flat Tinted Top-Diffused Package

This series was developed for use as compact surface display. It is housed in a 2x5 mm rectangular molded package. This device has a flat tinted, top diffused package for uniform brightness when used in panels. The symbol LEDs are available in three bright colors: high efficiency red, yellow and gre.

TLSH210 Features

* D D D D D D D D Choice of three bright colors 96 11498 Uniform illumination Luminous intensity selected into groups Suitable for DC and pulse operation Flat light emitting surface Direct symbol indication is possible Yellow and green color categorized Wide viewing angle Applications Status lights
