TLWY7900 - TELUXE

Datasheet Summary

Description

The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required.

It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP technology.

Features

  • D D D D D Utilizing (AS) AllnGaP technology High luminous flux Supreme heat dissipation: RthJP is 90 K/W High operating temperature: Tj up to + 125 °C Type TLWR meets SAE and ECE color requirements D Packed in tubes for automatic insertion D Luminous flux and color categorized for each tube D Small mechanical tolerances allow precise usage of external reflectors or lightguides D TLWR types additionally forward voltage categorized.

📥 Download Datasheet

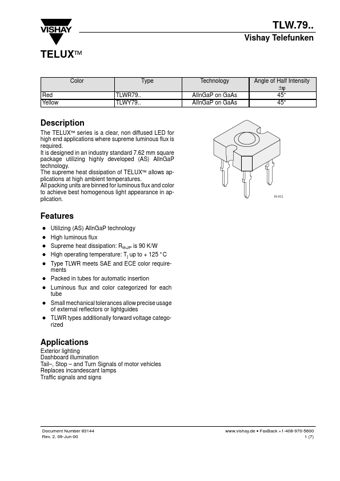

Datasheet preview – TLWY7900

Datasheet Details

Part number TLWY7900
Manufacturer Vishay Telefunken
File Size 75.30 KB
Description TELUXE
Datasheet download datasheet TLWY7900 Datasheet
Additional preview pages of the TLWY7900 datasheet.

📁 Similar Datasheet

  • TLWY8900 - Utilizing one of the world brightest AllnGaP technologies LED (Vishay Siliconix)
  • TLWBG7900 - TELUX LED (Vishay Siliconix)
  • TLWBG8600 - TELUX LED (Vishay Siliconix)
  • TLWBG8900 - TELUX LED (Vishay Siliconix)
  • TLWD1060 - LED Lamp (Toshiba Semiconductor)
  • TLWD1060T18 - LED Lamp (Toshiba Semiconductor)
  • TLWD1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWD1100T11 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWJ1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWK1100B - Panel Circuit Indicator (Toshiba Semiconductor)
Other Datasheets by Vishay Telefunken

Full PDF Text Transcription

Click to expand full text
TLW.79.. Vishay Telefunken TELUX™ Color Red Yellow TLWR79.. TLWY79.. Type Technology AlInGaP on GaAs AlInGaP on GaAs Angle of Half Intensity ±ö 45° 45° Description The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and color to achieve best homogenous light appearance in application.
