1N4246GP

Glass Passivated Junction Plastic Rectifier

1N4246GP Features

* Superectifier structure for high reliability application

* Cavity-free glass-passivated junction

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* Solder dip 275 °C max. 10 s, per JESD 22-B106

* Material categ

1N4246GP Datasheet (73.88 KB)

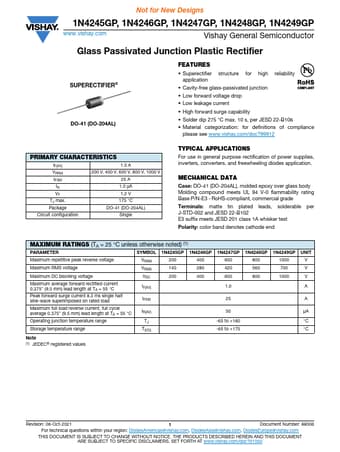

Preview of 1N4246GP PDF

Datasheet Details

Part number:

1N4246GP

Manufacturer:

Vishay ↗

File Size:

73.88 KB

Description:

Glass passivated junction plastic rectifier.
Not for New Designs 1N4245GP, 1N4246GP, 1N4247GP, 1N4248GP, 1N4249GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic.
