1N4746A, 1N4728A Zener Diodes

1N4746A Description

www.vishay.com 1N4728A to 1N4761A Vishay Semiconductors Zener Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models .

1N4746A Features

* Silicon planar power Zener diodes
* For use in stabilizing and clipping circuits with high power rating
* Standard Zener voltage tolerance is ± 5 %

1N4746A Applications

* Voltage stabilization PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. 3.3 to 75 Test current IZT VZ specification Circuit configuration 3.3 to 76 Thermal equilibrium Single UNIT V mA ORDERING INFORMATION DEVICE NAME ORDERING CODE 1N4728A to 1N4761A 1N4728A to 1N4761A -se

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4746A, 1N4728A. Please refer to the document for exact specifications by model.

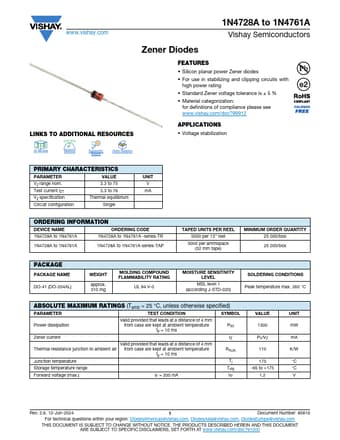

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4746A, 1N4728A
Manufacturer
Vishay ↗
File Size
93.27 KB
Datasheet
1N4728A-Vishay.pdf
Description
Zener Diodes
Note
This datasheet PDF includes multiple part numbers: 1N4746A, 1N4728A.
Please refer to the document for exact specifications by model.
