1N4749A

Zener Diodes

1N4749A Features

* Silicon planar power Zener diodes

* For use in stabilizing and clipping circuits with high power rating

* Standard Zener voltage tolerance is ± 5 %

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

* Vo

1N4749A Datasheet (93.27 KB)

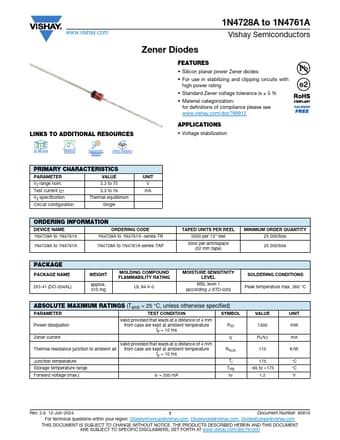

Preview of 1N4749A PDF

Datasheet Details

Part number:

1N4749A

Manufacturer:

Vishay ↗

File Size:

93.27 KB

Description:

Zener diodes.
www.vishay.com 1N4728A to 1N4761A Vishay Semiconductors Zener Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Or.
