1N5062, 1N5059 Standard Avalanche Sinterglass Diode

1N5062 Description

www.vishay.com 1N5059, 1N5060, 1N5061, 1N5062 Vishay Semiconductors Standard Avalanche Sinterglass Diode 949539 DESIGN SUPPORT TOOLS click logo to .

1N5062 Features

* Glass passivated junction
* Hermetically sealed axial-leaded glass envelope
* Controlled avalanche characteristics
* Low reverse current
* High surge current loading
* Material categorization: for definitions of compliance please see www. vishay. com/

1N5062 Applications

* Rectification diode, general purpose           ORDERING INFORMATION (Example) DEVICE NAME ORDERING CODE 1N5062 1N5062TR 1N5062 1N5062TAP TAPED UNITS 5000 per 10" tape and reel 5000 per ammopack MINIMUM ORDER QUANTITY 25 000 25 000 PARTS TABLE PART 1N5059 1N5060 1N5061

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5062, 1N5059. Please refer to the document for exact specifications by model.

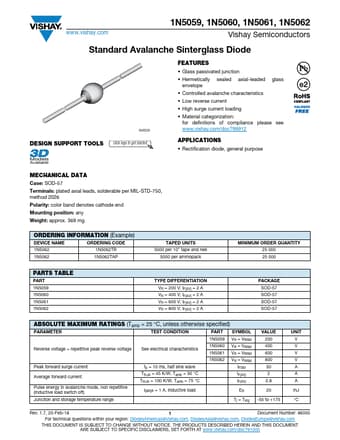

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5062, 1N5059
Manufacturer
Vishay ↗
File Size
134.83 KB
Datasheet
1N5059-Vishay.pdf
Description
Standard Avalanche Sinterglass Diode
Note
This datasheet PDF includes multiple part numbers: 1N5062, 1N5059.
Please refer to the document for exact specifications by model.
