1N5408GP, 1N5404GP Glass Passivated Junction Plastic Rectifier

Vishay

Description

www.vishay.com 1N5404GP, 1N5406GP, 1N5407GP, 1N5408GP Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier SUPERECTIFIER® DO-20.

📥 Download Datasheet

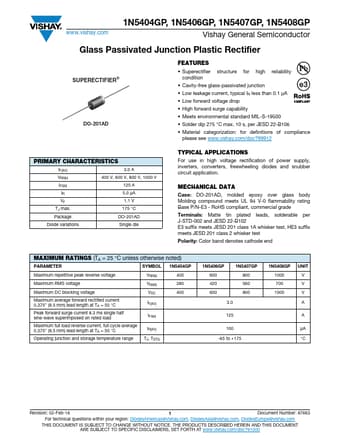

1N5408GP Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5408GP, 1N5404GP. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N5408GP, 1N5404GP
Manufacturer: Vishay ↗
File Size: 74.78 KB
Datasheet: 1N5404GP-Vishay.pdf
Description: Glass Passivated Junction Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: 1N5408GP, 1N5404GP.
Please refer to the document for exact specifications by model.

Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* Low leakage current, typical IR less than 0.1 μA
* Low forward voltage drop
* High forward surge capability
* Meets environmental standard MIL-S-19500

Applications

* For use in high voltage rectification of power supply, inverters, converters, freewheeling diodes and snubber circuit application. MECHANICAL DATA Case: DO-201AD, molded epoxy over glass body Molding compound meets UL 94 V-0 flamm
