299PHL-4TSI

Aluminum Electrolytic Capacitors

299PHL-4TSI Features

* Polarized aluminum electrolytic capacitors, non-solid electrolyte

* Large types, minimized dimensions, cylindrical aluminum case, insulated with a blue sleeve

* Pressure relief on the side of the aluminum case

* Very long useful life: 5000 h at 105 °C

* Temp

299PHL-4TSI General Description

VALUE Nominal case size (D x L in mm) 35 x 50 to 45 x 100 Rated capacitance range CR Tolerance on CR Rated voltage range, UR Category temperature range 470 μF to 2200 μF ± 20 % 400 V to 450 V -40 °C to +105 °C Endurance test at 105 °C 2000 h Useful life at 105 °C 5000 h Shelf life at 0 V, .

299PHL-4TSI Datasheet (107.53 KB)

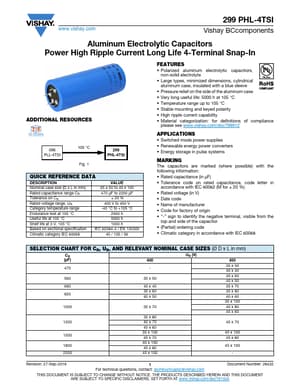

Preview of 299PHL-4TSI PDF

Datasheet Details

Part number:

299PHL-4TSI

Manufacturer:

Vishay ↗

File Size:

107.53 KB

Description:

Aluminum electrolytic capacitors.
www.vishay.com 299 PHL-4TSI Vishay BCcomponents Aluminum Electrolytic Capacitors Power High Ripple Current Long Life 4-Terminal Snap-In ADDITIONAL .
