2N4392 Datasheet, Jfets, Vishay

2N4392 Features

• Jfets D Low On-Resistance: 4391<30 W D Fast Switching
    –tON: 4 ns D High Off-Isolation: ID(off) with Low Leakage D Low Capacitance: < 3.5 pF D Low Insertion Loss BENEFITS D Low

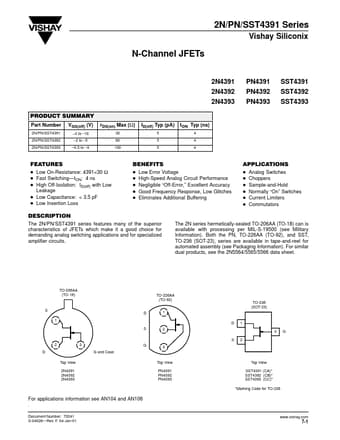

PDF File Details

Part number:

2N4392

Manufacturer:

Vishay ↗

File Size:

60.01kb

Download:

📄 Datasheet

Description:

N-channel jfets. The 2N/PN/SST4391 series features many of the superior characteristics of JFETs which make it a good choice for demanding analog swit

2N4392 Application

• Applications D Analog Switches D Choppers D Sample-and-Hold D Normally “On” Switches D Current Limiters D Commutators DESCRIPTION The 2N/PN/SST4391
