3N248, 3N246 Datasheet - Vishay

3N248 Glass Passivated Single-Phase Bridge Rectifier

3N248 Features

* UL recognition file number E54214

* Ideal for printed circuit board

* High surge current capability e4

* High case dielectric strength

* Solder dip 260 °C, 40 s

* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC PRIMARY CHARACTERI

3N246-Vishay.pdf

This datasheet PDF includes multiple part numbers: 3N248, 3N246. Please refer to the document for exact specifications by model.

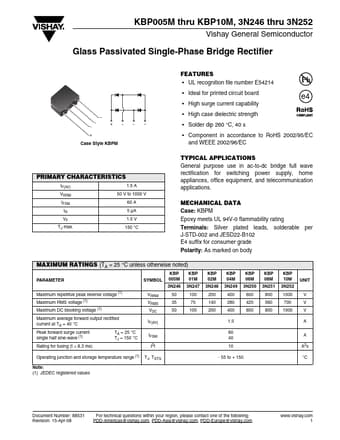

3N248 Datasheet Preview Page 2 3N248 Datasheet Preview Page 3

Datasheet Details

Part number:

3N248, 3N246

Manufacturer:

Vishay ↗

File Size:

89.46 KB

Description:

Glass passivated single-phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: 3N248, 3N246.
Please refer to the document for exact specifications by model.
