500D685M063BA2A

Aluminum Capacitor

Vishay

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Vishay Intertechnologies	500D685M063BA2A	6.8uF 63V 6.3x13 85?C Axi - Bulk (Alt: 500D685M063BA2A)	Avnet Americas	0	4560 units	$1.89	🛒 Buy Now

500D685M063BA2A Datasheet (84.96 KB)

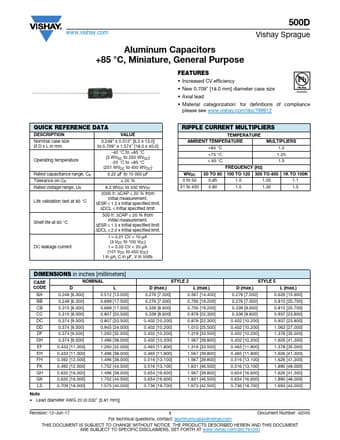

500D685M063BA2A Datasheet Preview — Preview of 500D685M063BA2A PDF Datasheet

Datasheet Details

Part number:

500D685M063BA2A

Manufacturer:

Vishay ↗

File Size:

84.96 KB

Description:

Aluminum capacitor

500D685M063BA2A Features

* Increased CV efficiency

* New 0.709" [18.0 mm] diameter case size

* Axial lead Available

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION VALUE Nominal case size Ø D x L in mm 0.24

500D685M063BA2A General Description

VALUE Nominal case size Ø D x L in mm 0.248" x 0.512" [6.3 x 13.0] to 0.709" x 1.574" [18.0 x 40.0] Operating temperature Rated capacitance range, CR Tolerance on CR Rated voltage range, UR Life validation test at 85 °C -40 °C to +85 °C (3 WVDC to 250 WVDC) -20 °C to +85 °C (251 WVDC to 450 WVD.
