515D478M010EK6AE3

Aluminum Capacitor

515D478M010EK6AE3 Features

* High CV per case size

* Low cost

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION VALUE Nominal case size Ø D x L in mm 0.197" x 0.433" [5.0 x 11.0] to 0.709" x 1.575" [18.0 x 40.0] Operating

515D478M010EK6AE3 General Description

VALUE Nominal case size Ø D x L in mm 0.197" x 0.433" [5.0 x 11.0] to 0.709" x 1.575" [18.0 x 40.0] Operating temperature Rated capacitance range, CR Tolerance on CR Rated voltage range, UR Termination -40 °C to +85 °C -25 °C to +85 °C for 315 WVDC to 450 WVDC units 0.1 μF to 18 000 μF ± 20 % 6.

515D478M010EK6AE3 Datasheet (110.53 KB)

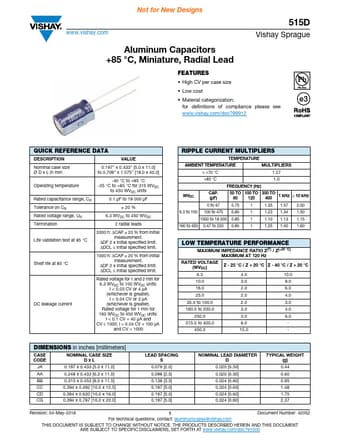

Preview of 515D478M010EK6AE3 PDF

Datasheet Details

Part number:

515D478M010EK6AE3

Manufacturer:

Vishay ↗

File Size:

110.53 KB

Description:

Aluminum capacitor.
