516D225M315MM6AE3

Aluminum Capacitor

516D225M315MM6AE3 Features

* High CV per case size

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION VALUE Nominal case size Ø D x L in mm 0.197" x 0.472" [5.0 x 12.0] to 0.709" x 1.614" [18.0 x 41.0] Operating temperature Rated

516D225M315MM6AE3 General Description

VALUE Nominal case size Ø D x L in mm 0.197" x 0.472" [5.0 x 12.0] to 0.709" x 1.614" [18.0 x 41.0] Operating temperature Rated capacitance range, CR Tolerance on CR Rated voltage range, UR Termination -40 °C to +85 °C (-25 °C to +85 °C for 315 WVDC to 450 WVDC units) 0.47 μF to 10 000 μF ± 20 .

516D225M315MM6AE3 Datasheet (92.52 KB)

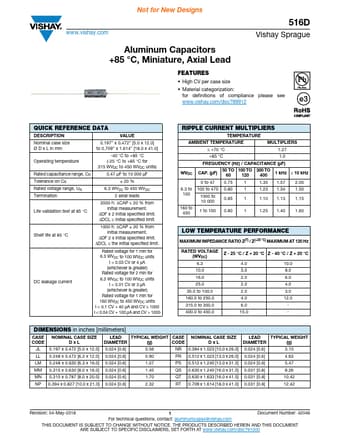

Preview of 516D225M315MM6AE3 PDF

Datasheet Details

Part number:

516D225M315MM6AE3

Manufacturer:

Vishay ↗

File Size:

92.52 KB

Description:

Aluminum capacitor.
