517D226M160CG6AE3

Aluminum Capacitor

517D226M160CG6AE3 Features

* High CV per case size

* Low cost

* Solvent resistant construction (through 100 WVDC)

* Life test to 2000 h at +105 °C

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION VALUE Nomi

517D226M160CG6AE3 General Description

VALUE Nominal case size Ø D x L in mm 0.197" x 0.433" [5.0 x 11.0] to 0.709" x 1.575" [18.0 x 40.0] Operating temperature Rated capacitance range, CR Tolerance on CR -55 °C to +105 °C (6.3 WVDC to 100 WVDC) -40 °C to +105 °C (160 WVDC to 250 WVDC) 0.47 μF to 15 000 μF ± 20 % Rated voltage rang.

517D226M160CG6AE3 Datasheet (111.76 KB)

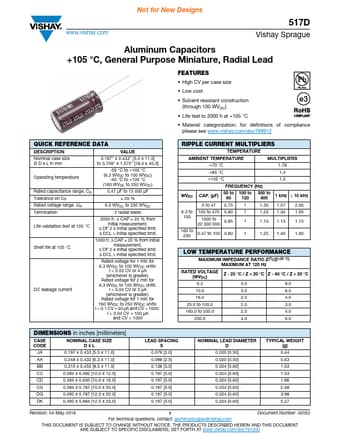

Preview of 517D226M160CG6AE3 PDF

Datasheet Details

Part number:

517D226M160CG6AE3

Manufacturer:

Vishay ↗

File Size:

111.76 KB

Description:

Aluminum capacitor.
