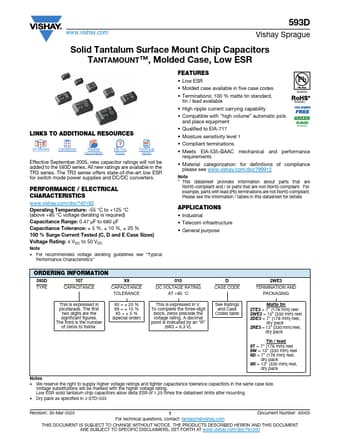

www.vishay.com 593D Vishay Sprague Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Low ESR LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Calculators Related Documents Did You Know T Technical Notes Effective September 2005, new capacitor ratings will not be added to the 593D series.
All new ratings are available in the TR3 series.
The TR3 series offers state-of-the-art low ESR for switch mode power supplies and DC/DC converters.
PERFORMANCE / ELECTRICAL CHARACTER
593D336X9025E Features
* Low ESR
* Molded case available in five case codes
* Terminations: 100 % matte tin standard, tin / lead available Available Available
* High ripple current carrying capability
* Compatible with “high volume” automatic pick and place equipment
Datasheet Details
593D336X9025E, 593D337X96R3E2TE3
472.68 KB
Solid tantalum surface mount chip capacitors.
This datasheet PDF includes multiple part numbers: 593D336X9025E, 593D337X96R3E2TE3.
Please refer to the document for exact specifications by model.
