715C15DKS10 Datasheet - Vishay

715C15DKS10 High Voltage Class 2 Ceramic DC Disc Capacitors

Ceramic Class Ceramic Dielectric Type Voltage (VDC) Min. Capacitance (pF) Max. Capacitance (pF) Mounting 715C10DK### 10 000 10 000 20 000 715C15DK### 15 000 1500 10 000 VALUE 2 Y5U 715C20DK### 20 000 500 6800 Screw terminal 715C30DK### 30 000 500 4700 715C40DK### 40 000 300 3300 DIELECTRIC ST.

715C15DKS10 Features

* Class 2 ceramic (Y5U)

* Low inductance

* High insulation resistance

* Epoxy coating

* Screw terminal mounting

* Ceramic singlelayer capacitor

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 DESIGN

715C15DKS10 Datasheet (88.49 KB)

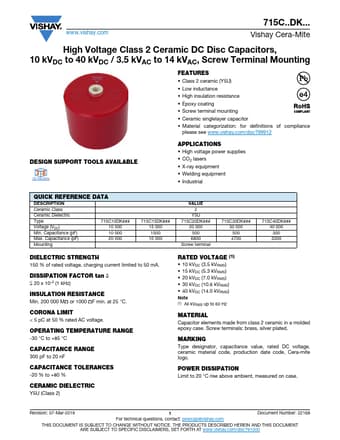

Preview of 715C15DKS10 PDF
715C15DKS10 Datasheet Preview Page 2 715C15DKS10 Datasheet Preview Page 3

Datasheet Details

Part number:

715C15DKS10

Manufacturer:

Vishay ↗

File Size:

88.49 KB

Description:

High voltage class 2 ceramic dc disc capacitors.
