85HF60, 85HF10 Datasheet - Vishay

85HF60, 85HF10, Standard Recovery Diodes

85HF(R) Series Vishay High Power Products Standard Recovery Diodes, (Stud Version), 85 A .

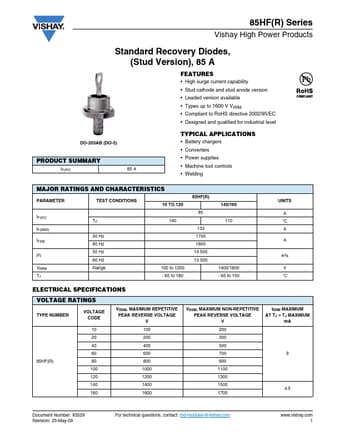

datasheet Preview Page 1 from Datasheet4u.com

85HF10-Vishay.pdf

85HF60 Datasheet Preview — This datasheet PDF includes multiple part numbers: 85HF60, 85HF10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

85HF60, 85HF10

Manufacturer:

Vishay ↗

File Size:

146.37 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: 85HF60, 85HF10.
Please refer to the document for exact specifications by model.

Features

* High surge current capability
* Stud cathode and stud anode version
* Leaded version available
* Types up to 1600 V VRRM
* Compliant to RoHS directive 2002/95/EC
* Designed and qualified for industrial level DO-203AB (DO-5) PRODUCT SUMMARY IF(AV)

Applications

* Battery chargers
* Converters
* Power supplies
* Machine tool controls
* Welding MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS 10 TO 120 IF(AV) IF(RMS) IFSM I2t VRRM TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range 140 100 to 1200 - 65 to 180 85HF(R
