AC10

Wirewound Resistors

Vishay

AC10 Features

* AEC-Q200 qualified AC-AT series

* High power dissipation in small design

* Non-flammable coating conforming to UL 94 V-0

* Excellent pulse load capability

* Non-inductive (NI) version available

* WSZ-form lead bending available for SMD mounting

AC10 General Description

Part Number: AC03000001509JAC00 AC03AT0001509JAC00 AC0 3 0 0 0 0 0 1 5 0 9 JAC0 0 AC0 3AT 0 0 0 1 5 0 9 JAC0 0 MODEL VARIANT AC01000 = AC01 AC03000 = AC03 AC04000 = AC04 AC05000 = AC05 AC07000 = AC07 AC10000 = AC10 AC01AT0 = AC01-AT AC03AT0 = AC03-AT AC04AT0 = AC04-AT AC05AT0 = AC05-AT AC07AT0 =.

AC10 Datasheet (251.51 KB)

AC10 Datasheet Preview — Preview of AC10 PDF

Datasheet Details

Part number:

AC10

Manufacturer:

Vishay ↗

File Size:

251.51 KB

Description:

Wirewound resistors.

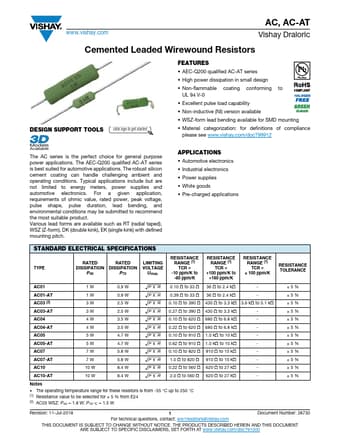

www.vishay.com AC, AC-AT Vishay Draloric Cemented Leaded Wirewound Resistors DESIGN SUPPORT TOOLS click logo to get started Models Available The AC.
