AY1 - Ceramic Disc Capacitor

Product Overview

Vishay

Datasheet Details

Part number	AY1
Manufacturer	Vishay
File Size	291.51 KB
Description	Ceramic Disc Capacitor
Datasheet	AY1 Datasheet

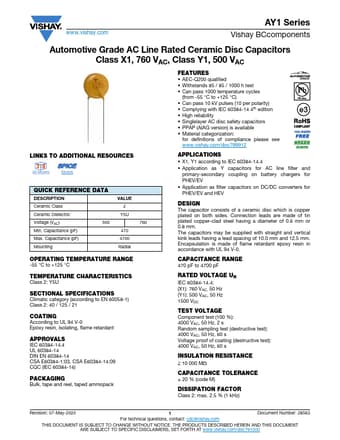

Additional preview pages of the AY1 datasheet.

Product details

Description

VALUE Ceramic Class 2 Ceramic Dielectric Y5U Voltage (VAC) Min.Capacitance (pF) 500 760 470 Max.Capacitance (pF) 4700 Mounting Radial APPLICATIONS X1, Y1 according to IEC 60384-14.4 Application as Y capacitors for AC line filter and primary-secondary coupling on battery chargers for PHEV/EV Application as filter capacitors on DC/DC converters for PHEV/EV and HEV DESIGN The capacitor consists of a ceramic disc which is copper plated on both sides.Con

Features

AEC-Q200 qualified.
Withstands 85 / 85 / 1000 h test.
Can pass 1000 temperature cycles (from -55 °C to +125 °C).
Can pass 10 kV pulses (10 per polarity).
Complying with IEC 60384-14 4th edition.
High reliability.
Singlelayer AC disc safety capacitors.
PPAP (AIAG version) is available.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
