BAS16D-V - Small Signal Fast Switching Diode

Vishay

📥 Download Datasheet

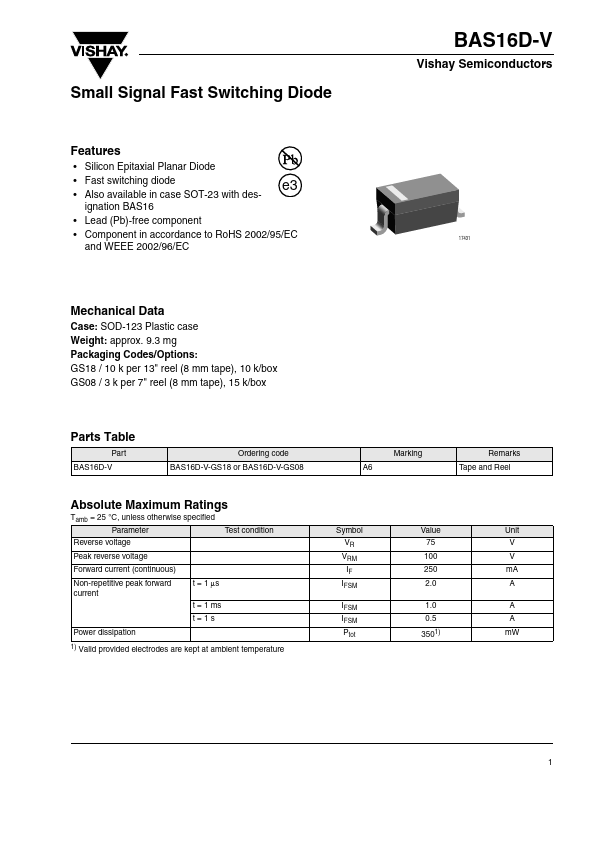

BAS16D-V Datasheet Preview — Preview of BAS16D-V PDF

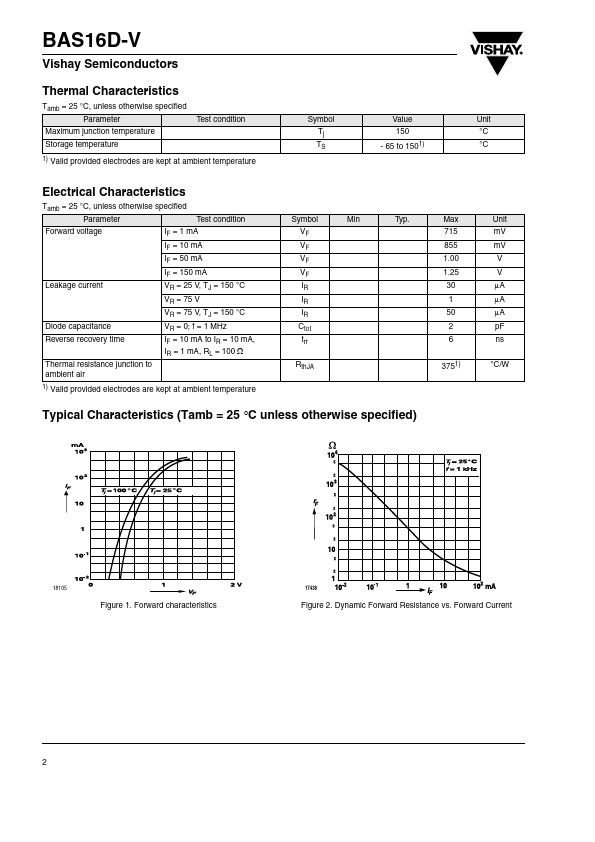

datasheet Preview Page 2

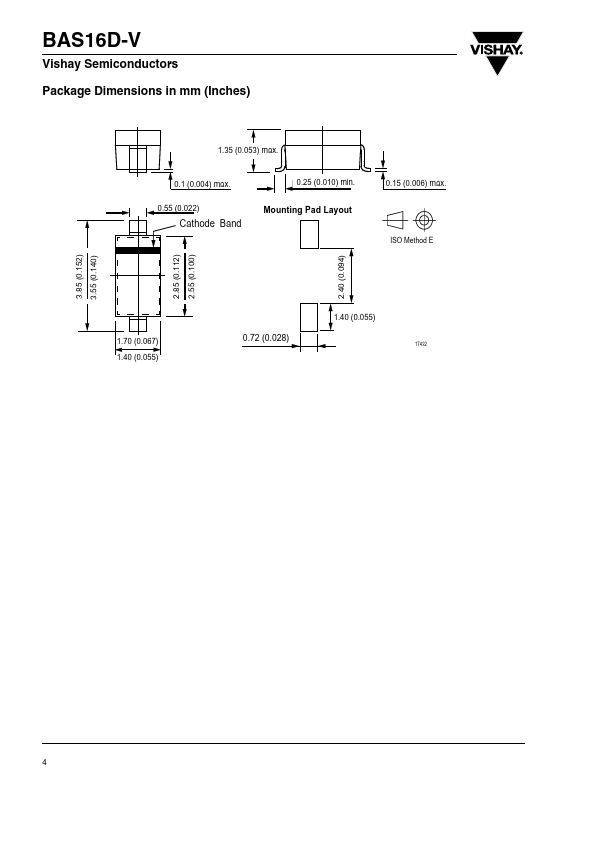

datasheet Preview Page 3

Datasheet Details

Part number: BAS16D-V
Manufacturer: Vishay ↗
File Size: 63.43 KB
Datasheet: BAS16D-V-Vishay.pdf
Description: Small Signal Fast Switching Diode

BAS16D-V Product details

Features

Silicon Epitaxial Planar Diode.
Fast switching diode e3.
Also available in case SOT-23 with des- ignation BAS16.
Lead (Pb)-free component.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC BAS16D-V Vishay Semiconductors 17431 Mechanical Data Case: SOD-123 Plastic case Weight: approx. 9.3 mg Packaging Codes/Options: GS18 / 10 k per 13" reel (8 mm tape), 10 k/box GS08 / 3 k per 7" reel (8 mm tape), 15 k/box Parts Table Part BAS16.
