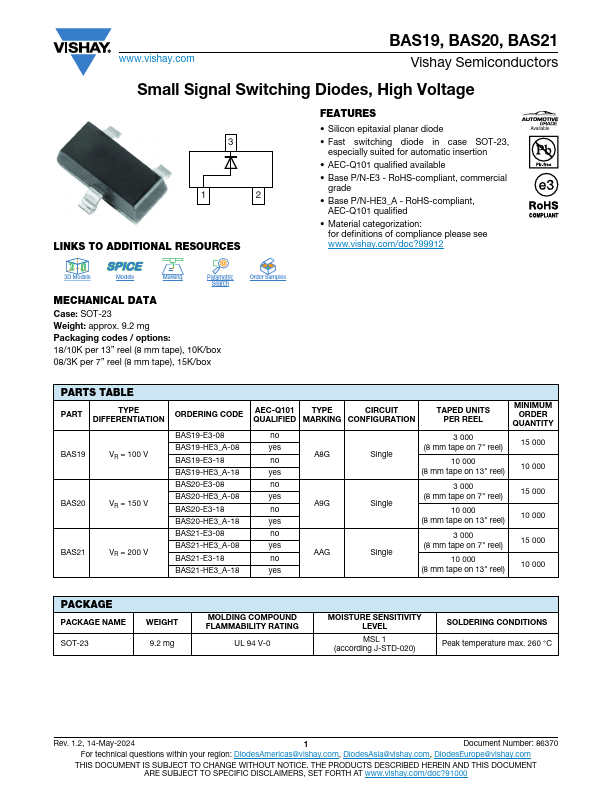

BAS20, BAS19 - Small Signal Switching Diodes

Vishay

Datasheet Details

Part number	BAS20, BAS19
Manufacturer	Vishay
File Size	506.68 KB
Description	Small Signal Switching Diodes
Datasheet	BAS19-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: BAS20, BAS19. Please refer to the document for exact specifications by model.

Silicon epitaxial planar diode.
Fast switching diode in case SOT-23, especially suited for automatic insertion.
AEC-Q101 qualified available.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3_A - RoHS-compliant, AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Available PARTS TABLE PART TYPE.
