BAS40-04-G - Small Signal Schottky Diodes

Product Overview

Vishay

📥 Download Datasheet

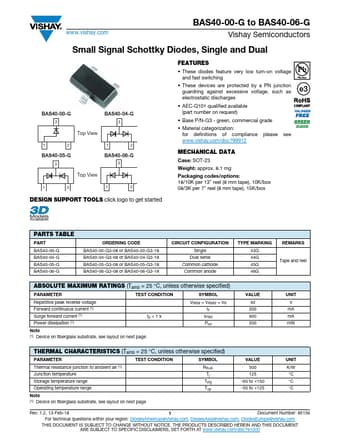

BAS40-04-G Small Signal Schottky Diodes by Vishay - Datasheet Preview — Datasheet preview – BAS40-04-G

Datasheet Details

Part number	BAS40-04-G
Manufacturer	Vishay
File Size	88.48 KB
Description	Small Signal Schottky Diodes
Datasheet	BAS40-04-G Datasheet
Note	This datasheet PDF includes multiple part numbers: BAS40-04-G, BAS40-00-G. Please refer to the document for exact specifications by model.
Additional preview pages of the BAS40-04-G datasheet.

Product details

Features

These diodes feature very low turn-on voltage and fast switching.
These devices are protected by a PN junction guardring against excessive voltage, such as electrostatic discharges.
AEC-Q101 qualified available (part number on request).
Base P/N-G3 - green, commercial grade.
Material categorization:  for definitions of compliance please see www. vishay. com/doc?99912.
