BYW53, BYW52 Datasheet - Vishay

BYW53, BYW52, Standard Avalanche Sinterglass Diode

www.vishay.com BYW52, BYW53, BYW54, BYW55, BYW56 Vishay Semiconductors Standard Avalanche Sinterglass Diode DESIGN SUPPORT TOOLS 949539 click logo.

Features

* Controlled avalanche characteristics
* Glass passivated junction
* Hermetically sealed package
* Low reverse current
* High surge current loading
* AEC-Q101 qualified
* Material categorization: for definitions of compliance please see www. vi

Applications

* Rectification, general purpose        ORDERING INFORMATION (Example) DEVICE NAME ORDERING CODE TAPED UNITS BYW56 BYW56-TR 5000 per 10" tape and reel BYW56 BYW56-TAP 5000 per ammopack MINIMUM ORDER QUANTITY 25 000 25 000 PARTS TABLE PART BYW52 BYW53 BYW54 BYW55 BYW56 TY

BYW52-Vishay.pdf

This datasheet PDF includes multiple part numbers: BYW53, BYW52. Please refer to the document for exact specifications by model.

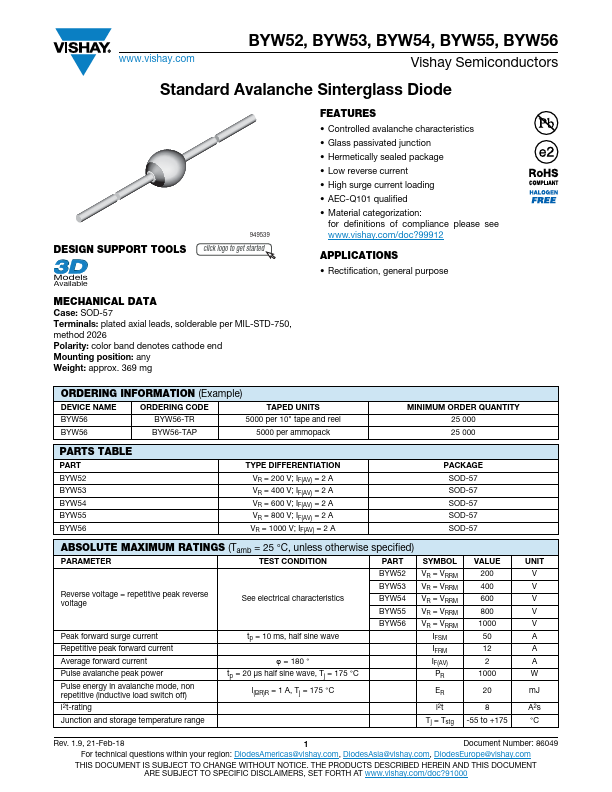

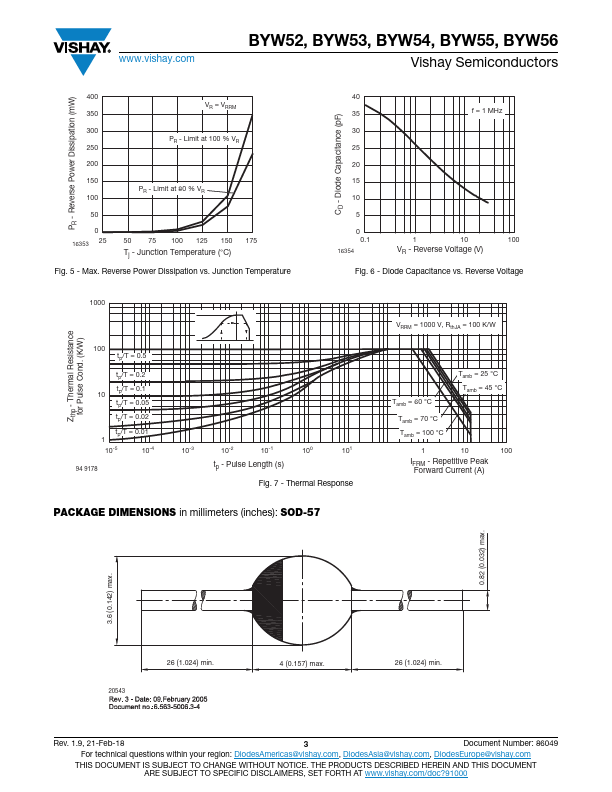

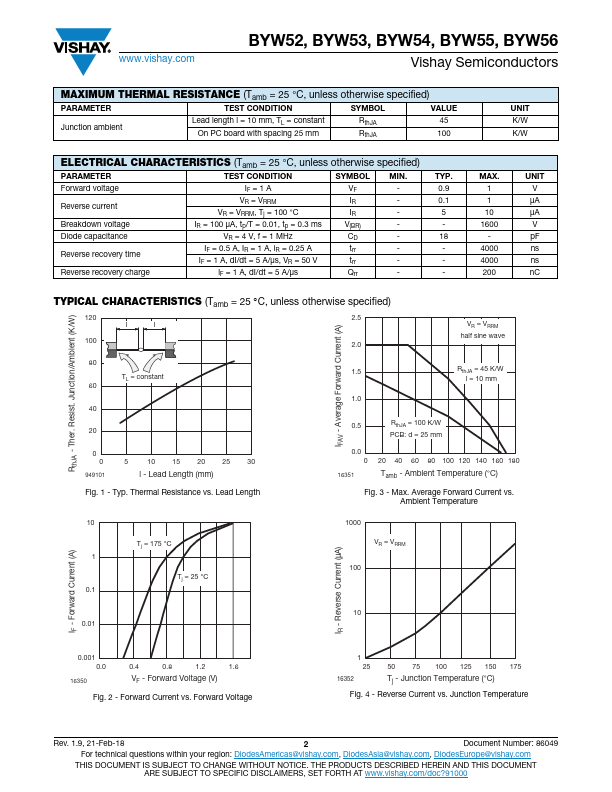

BYW53 Datasheet Preview Page 2 BYW53 Datasheet Preview Page 3

Datasheet Details

Part number:

BYW53, BYW52

Manufacturer:

Vishay ↗

File Size:

134.74 KB

Description:

Standard Avalanche Sinterglass Diode

Note:

This datasheet PDF includes multiple part numbers: BYW53, BYW52.
Please refer to the document for exact specifications by model.
