BZD27C56P, BZD27C3V6P - Zener Diodes

Vishay

📥 Download Datasheet

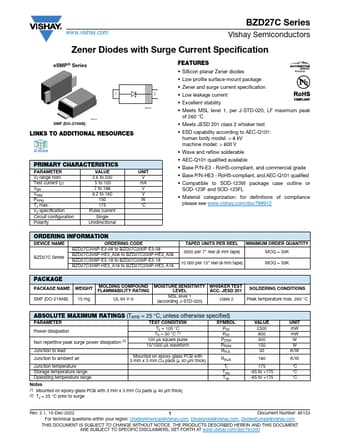

BZD27C56P Datasheet Preview — This datasheet PDF includes multiple part numbers: BZD27C56P, BZD27C3V6P. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BZD27C56P, BZD27C3V6P
Manufacturer	Vishay ↗
File Size	126.63 KB
Description	Zener Diodes
Datasheet	BZD27C3V6P-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: BZD27C56P, BZD27C3V6P. Please refer to the document for exact specifications by model.

BZD27C56P Product details

Features

Sillicon planar Zener diodes Available.
Low profile surface-mount package.
Zener and surge current specification.
Low leakage current.
Excellent stability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Meets JESD 201 class 2 whisker test.
ESD capability according to AEC-Q101: human body model: > 8 kV machine model: > 800 V.
Wave and reflow solderable.
AEC-Q101 qualified availabl.
