BZX584C15-02V, BZX584C2V4-02V Small Signal Zener Diodes

BZX584C15-02V Description

Small Signal Zener Diodes BZX584C-02V Series Vishay Semiconductors .

BZX584C15-02V Applications

* the BZX584C. . -02V series has a zener voltage tolerance of ± 5 %. Other voltage tolerances are available on request.
* Lead (Pb)-free component
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Mechanical Data Case: SOD-523 Plastic case Weight: approx. 1.6 mg Packaging

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BZX584C15-02V, BZX584C2V4-02V. Please refer to the document for exact specifications by model.

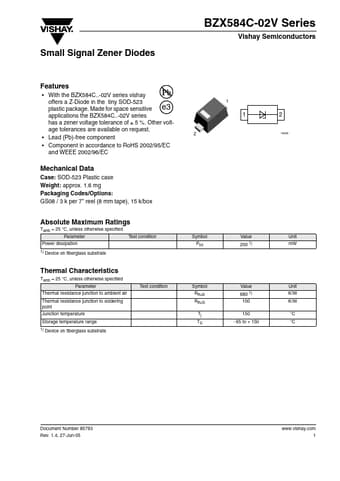

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BZX584C15-02V, BZX584C2V4-02V
Manufacturer
Vishay ↗
File Size
72.77 KB
Datasheet
BZX584C2V4-02V-Vishay.pdf
Description
Small Signal Zener Diodes
Note
This datasheet PDF includes multiple part numbers: BZX584C15-02V, BZX584C2V4-02V.
Please refer to the document for exact specifications by model.
