CRCW0402e3 - Standard Thick Film Chip Resistors

Vishay

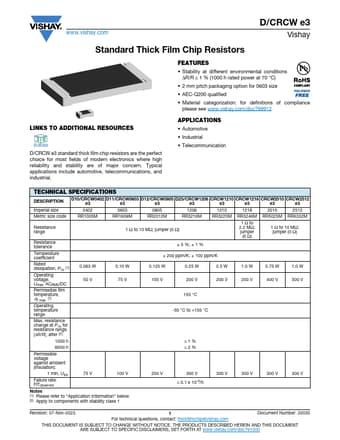

CRCW0402e3 Datasheet Preview — Preview of CRCW0402e3 PDF

Datasheet Details

Part number	CRCW0402e3
Manufacturer	Vishay ↗
File Size	133.76 KB
Description	Standard Thick Film Chip Resistors
Datasheet	CRCW0402e3-Vishay.pdf

CRCW0402e3 Product details

Description

D10/CRCW0402 D11/CRCW0603 D12/CRCW0805 D25/CRCW1206 CRCW1210 CRCW1218 CRCW2010 CRCW2512 e3 e3 e3 e3 e3 e3 e3 e3 Imperial size 0402 0603 0805 1206 1210 1218 2010 2512 Metric size code RR1005M RR1608M RR2012M RR3216M RR3225M RR3246M RR5025M RR6332M Resistance range 1 Ω to 10 MΩ; jumper (0 Ω) 1 Ω to 2.2 MΩ; jumper (0 Ω) 1 Ω to 10 MΩ; jumper (0 Ω) Resistance tolerance ± 5 %; ± 1 % Temperature coefficient ± 200 ppm/K; ± 100 ppm/K Rated dissipation, P70 (1) Operating vol

Features

Stability at different environmental conditions ΔR/R ≤ 1 % (1000 h rated power at 70 °C).
2 mm pitch packaging option for 0603 size.
AEC-Q200 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
