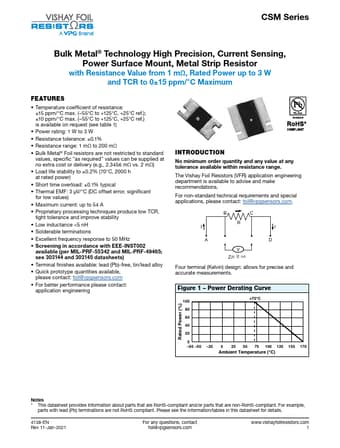

CSM3637 Datasheet Preview — This datasheet PDF includes multiple part numbers: CSM3637, CSM. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CSM3637, CSM
Manufacturer: Vishay ↗
File Size: 695.27 KB
Datasheet: CSM-Vishay.pdf
Description: Metal Strip Resistor
Note: This datasheet PDF includes multiple part numbers: CSM3637, CSM.
Please refer to the document for exact specifications by model.

CSM3637 Product details

Features

Temperature coefficient of resistance: ±15 ppm/°C max. (.
55°C to +125°C, +25°C ref. ); ±10 ppm/°C max. (.
55°C to +125°C, +25°C ref. ) is available on request (see table 1).
Power rating: 1 W to 3 W.
Resistance tolerance: ±0.1%.
Resistance range: 1 mΩ to 200 mΩ.
Bulk Metal® Foil resistors are not restricted to standard values, specific “as required” values can be supplied at no extra cost or delivery (e. g. , 2.3456 mΩ vs. 2 mΩ).
